Freedom Load Blocks

Six capacity-rated models from 8 to 230 USton. Built to DIN standards, tested to 4:1 safety factor, and available from stock.

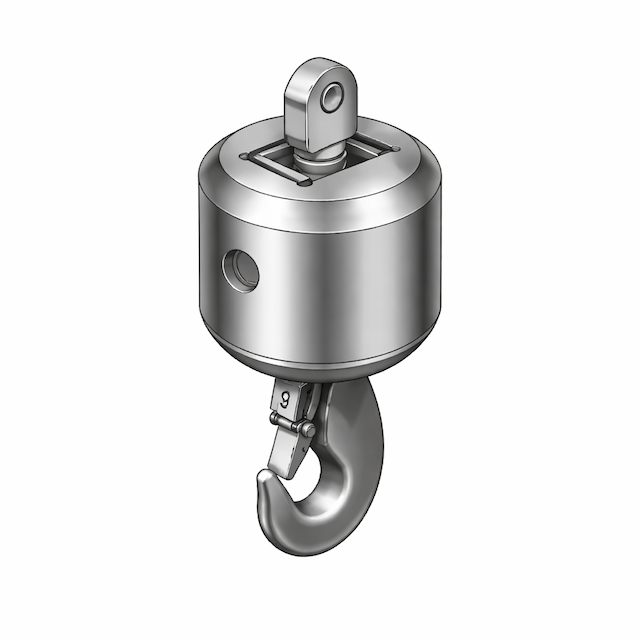

8 USton

LB-8

8 USton overhaul ball for single-line picks. Weighted hook point and FAG precision bearing. Weighs 443 lbs.

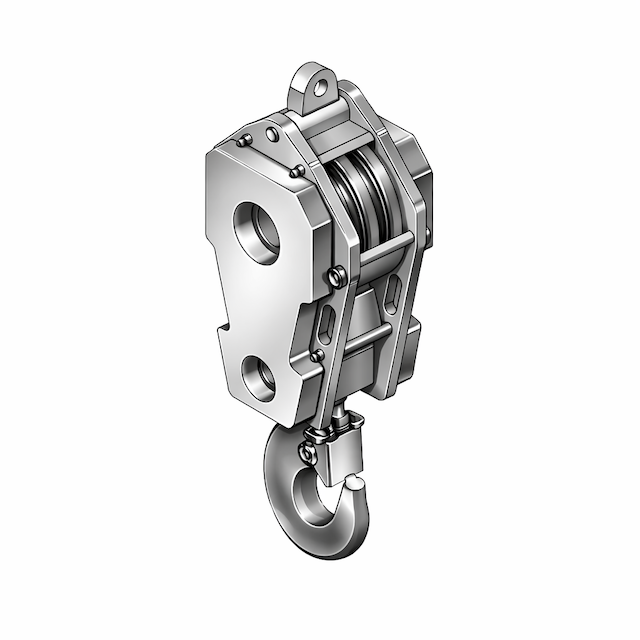

60 USton

60 USton block for ¾ in (19mm) wire rope. Multi-sheave design for demanding RT crane work. Weighs 1,212 lbs.

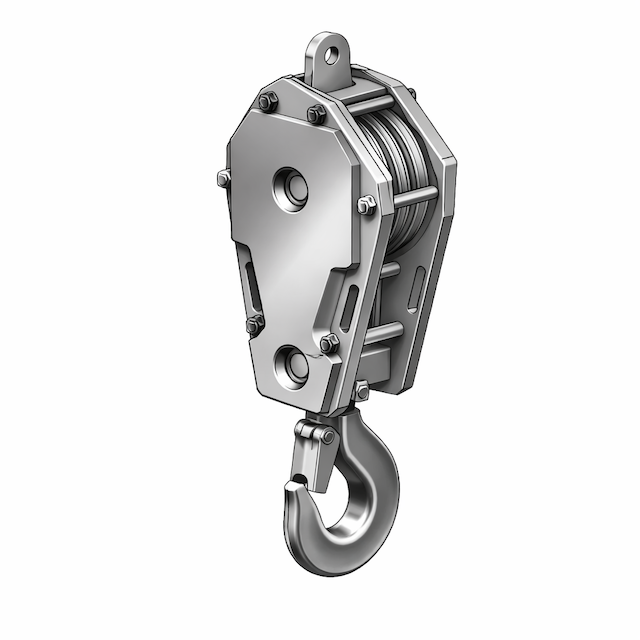

80 USton

80 USton block for 1 in (26mm) wire rope. 528mm machined sheave for continuous heavy-cycle crawler crane use. Weighs 2,405 lbs.

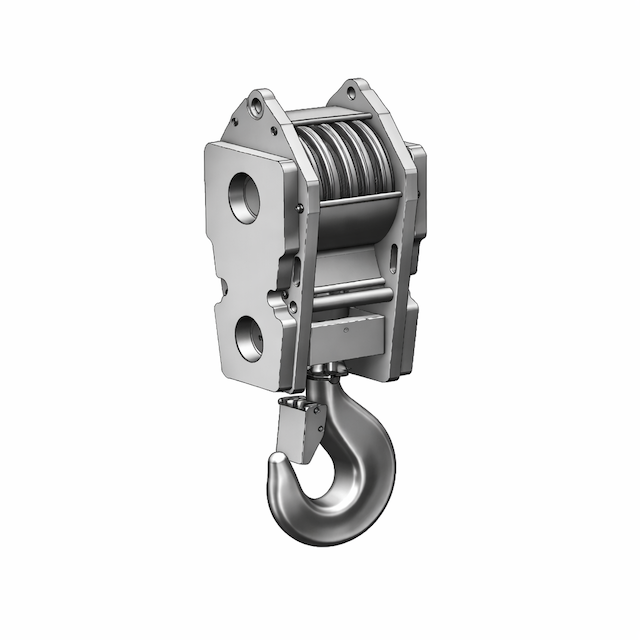

150 USton

150 USton block for 1 in (26mm) wire rope. Engineered for large crawler crane operations in the 160–200T class. Weighs 4,453 lbs.

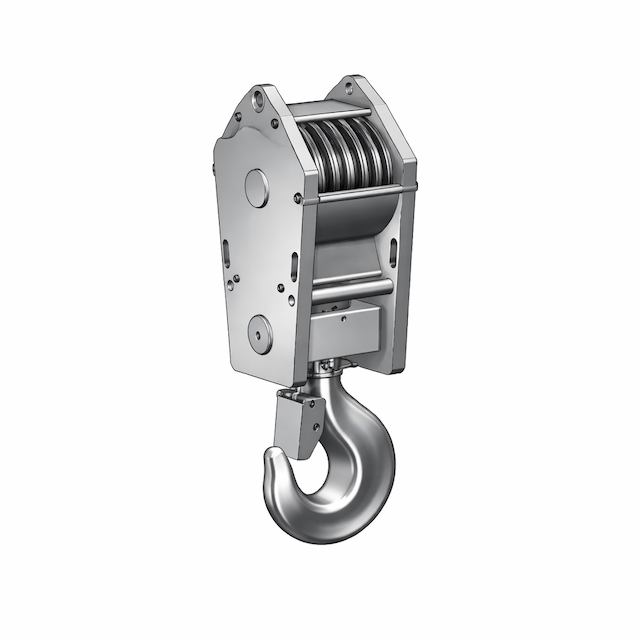

176 USton

176 USton block for 1 in (26mm) wire rope. Single-hook design for crawler cranes in the 275T and up class. Weighs 4,522 lbs.

230 USton

230 USton block for 1⅛ in (28mm) wire rope. 575mm sheave with optional ballast weights for precision load control. Weighs 5,650 lbs.
